Kingtech 1.3inch 128x128 resolution TFT LCD display. It with stable production. This 1.3 inch TFT LCD display supports 4 wire SPI interface, GC9107 driver IC. It with all viewing angle. Mainly application for Smart home, handheld device, Smart watch. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Small LCD display
IPS /Wide/All/Free viewing angle
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
Square shape
Get a Quote
Documentation
| Item | 1.3 inch 128x128 SPI interface LCD display |
| Model No. | PV01312W0313M |
| Resolution | 128*128 |

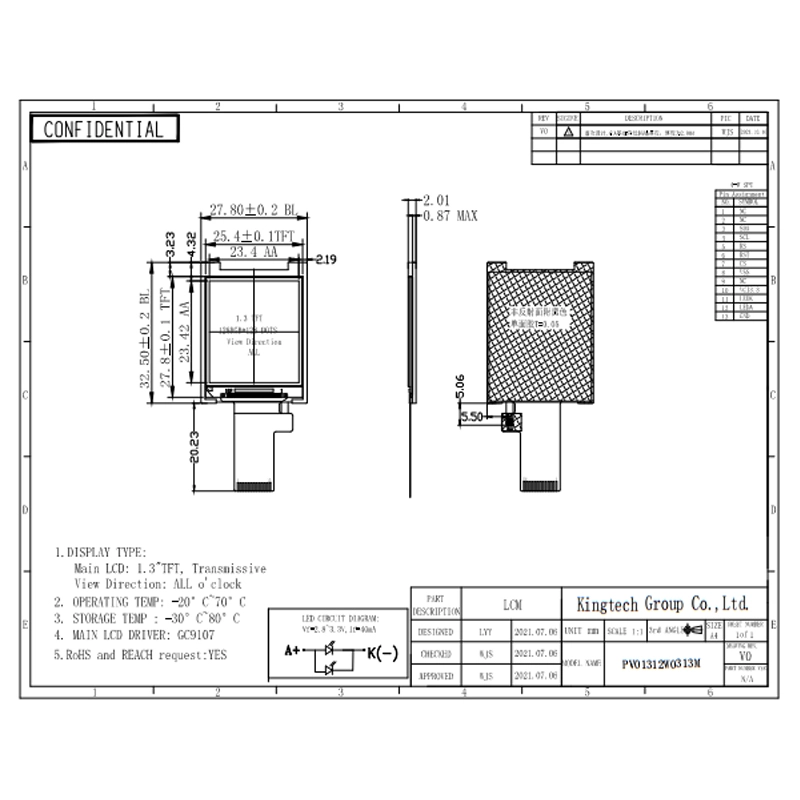

| Outline Dimension (mm) | 27.8*32.50*2.0 |
| Active Area (mm) | 23.42*23.42 |
| Viewing Angle | IPS |
| Brightness | 240nits |
| Interface | 4 wire SPI |
| Backlight | 1*2LEDs |
| Driving IC | GC9107 |
| PIN No. | 13 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 1.3inch 1280x128 TFT LCD module used for Medical, hand-held device, industrial, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, HMI, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, smart watch, automotive and 3D printer.
