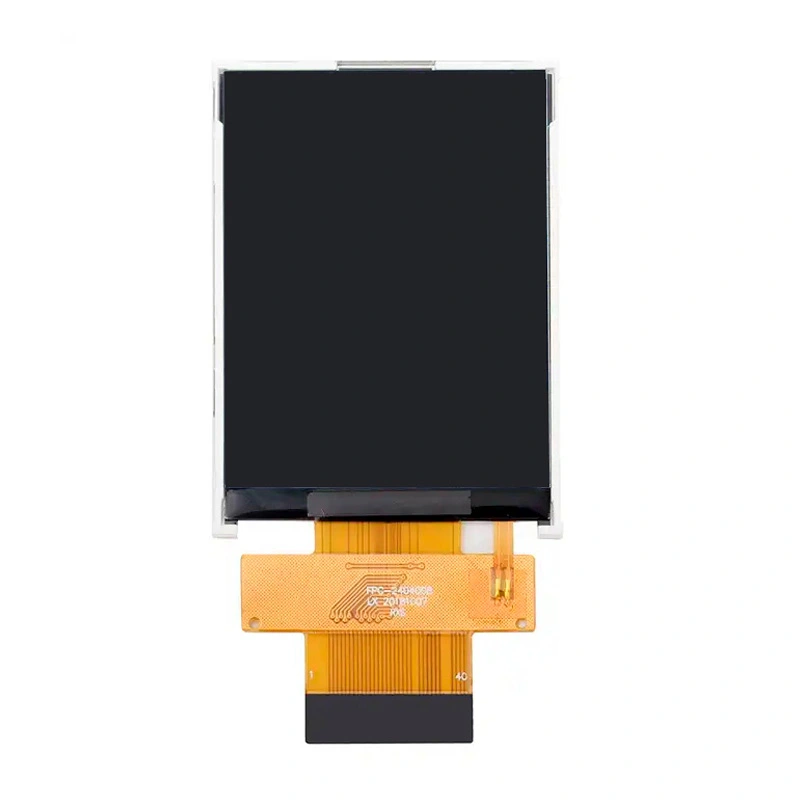

Kingtech 2.4 inch 240*320 resolution LCD display with stable production. This 2.4 inch QVGA TFT LCD module supports MCU interface, ST7789VI driver IC, which is 800nit brightness, and can support sunlight readable. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
TFT lcd display
Stable supply
QVGA resolution
High brightness/outdoor/Sunlight readable
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, out door application, charging station, forklift
Get a Quote
Documentation

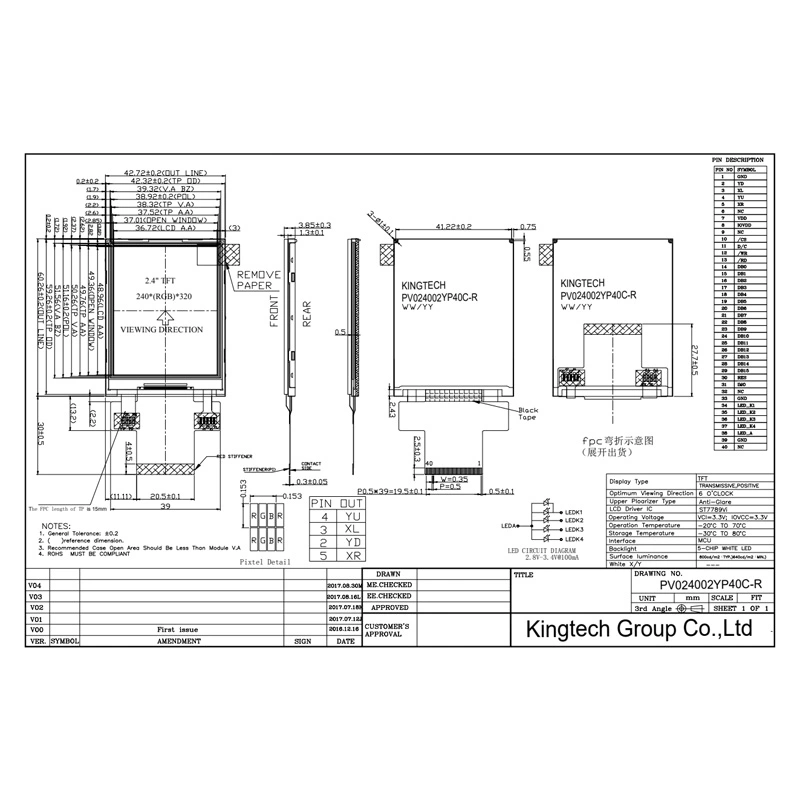

| Item | 2.4 inch 240*320 resolution SPI LCD display |
| Model No. | PV024002YP40C-R |
| Resolution | 240*320 |
| Outline Dimension (mm) | 42.72*60.26*3.85 |
| Active Area (mm) | 48.96*36.72 |
| Viewing Angle | 6 O'clock |
| Brightness | 800nits |
| Interface | MCU |
| Backlight | 1*5LED |
| Driving IC | ST7789VI |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 2.8 inch 240*320 sunlight readable lcd display can be used for Medical, smart home hand-held device, industrial or others outdoor application.
