Kingtech PV07065D0140S is a unique portrait 7inch bar type TFT LCD display with 280*1424. Its LCD panel has a wide viewing angle by IPS technology. Its driver ic is OTA7290B. Its brightness is 300nits with serial 8LED light. Its FPC cable connection is plug-in type with 40pins, MIPI interface. It is without touch. Its special looking makes it suitable for DVD display, advertising, smart home etc.
7.0 inch TFT LCD display
280*1424 bar type LCD
Stable supply
Full/IPS/Wide/All Viewing angle
MIPI Interface
300nits brightness
Touch Optional
Advertising display, industrial application, and IOT, medical, automotive, home application.
Get a Quote
Documentation

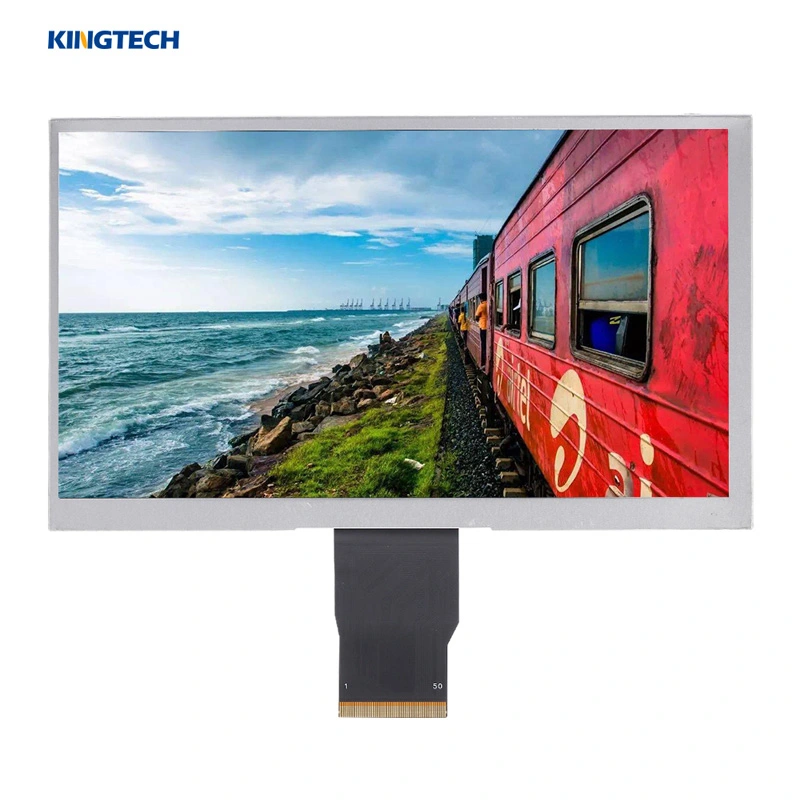

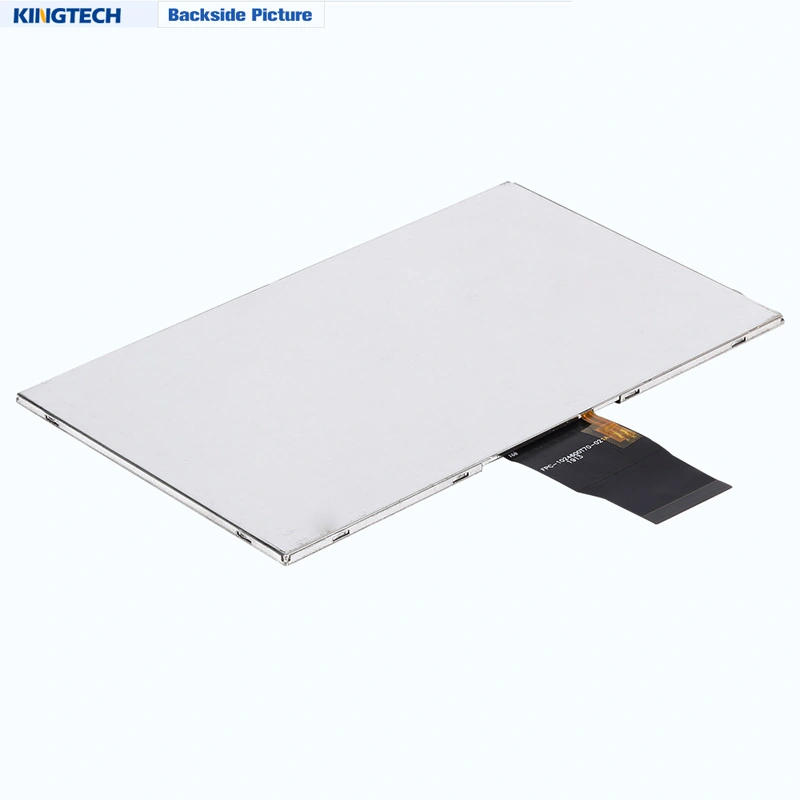

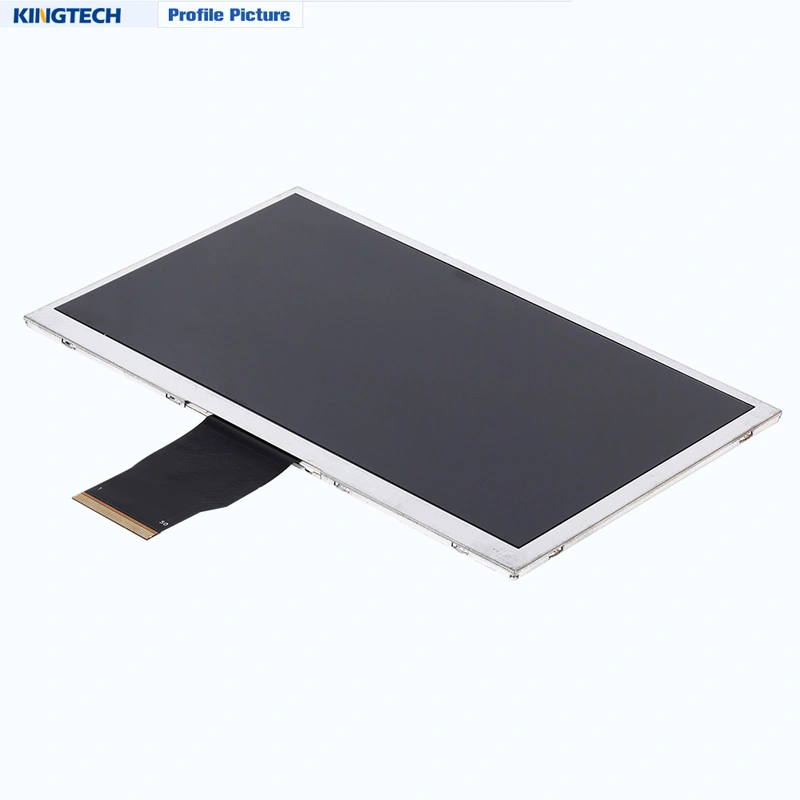

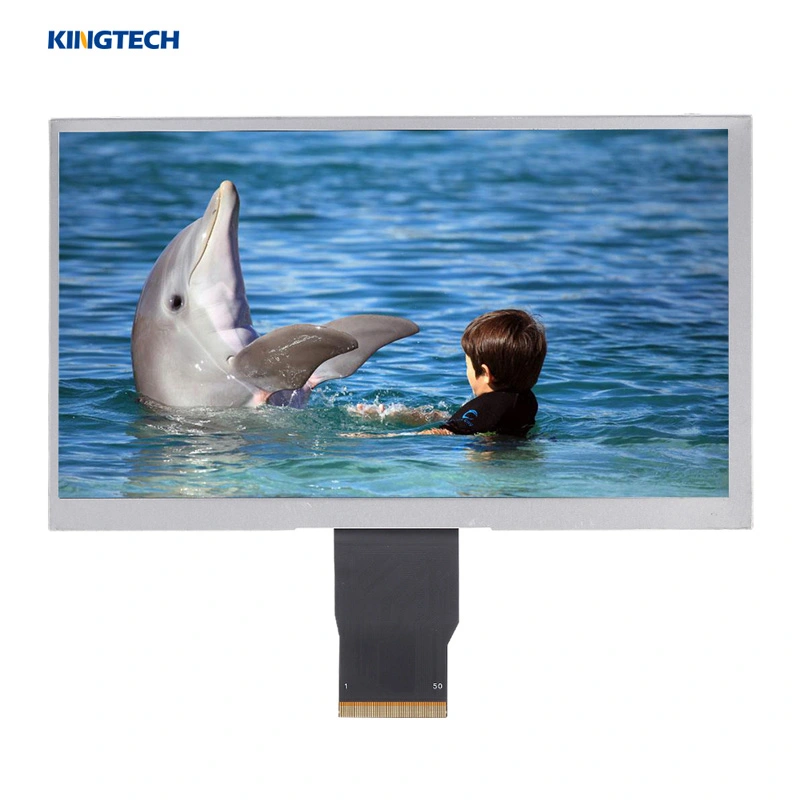

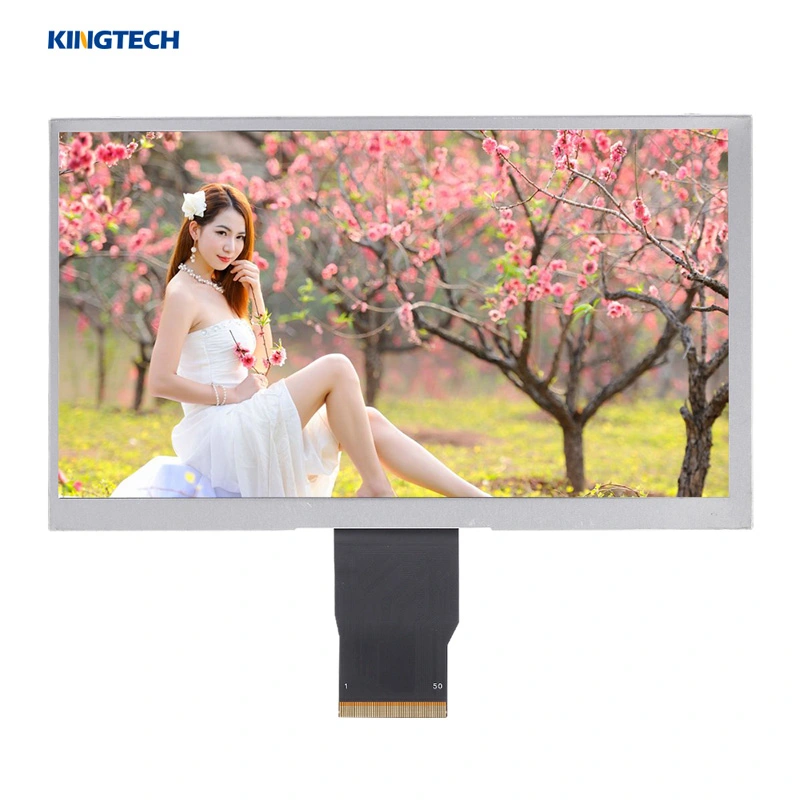

| Item | 7.0 inch TFT 800x480 module display |
| Model No. | PV07061Y0140N |
| Resolution | 800*480 |
| Outline Dimension (mm) | 165.0*104.0*5.5 |
| Active Area (mm) | 152.4*91.44 |
| Viewing Angle | Full |
| Brightness | 1000nits/High brightness/Sunlight readable/Outdoor |
| Interface | LVDS 8 bit or 6 bit |
| Backlight | 6*5LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -30~85 |
| Storage Temperature | -40~90 |
| Touch screen | Support capacitive touch and resistive touch custom |
| Board | HDMI board |
| Application | Kiosk, POS, Motor, Vendor machine, Industrial control |
The 7.0 inch280*1424 Bar type TFT display module can be used for industrial application, and IOT, medical, automotive, home application,advertising display.Its shape is very special.
