Kingtech 4.0 inch 720*720 TFT display supply very stable. This 4.0 inch supports MCU interface. In addition, the 4.0 inch 720*720 square TFT display module brightness is 500nits, and this 4.0 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
4.0 inch square TFT display
720*720
Stable supply
All/Full/Wide/IPS viewing angle
RGB interface
500nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart home
Get a Quote
Documentation

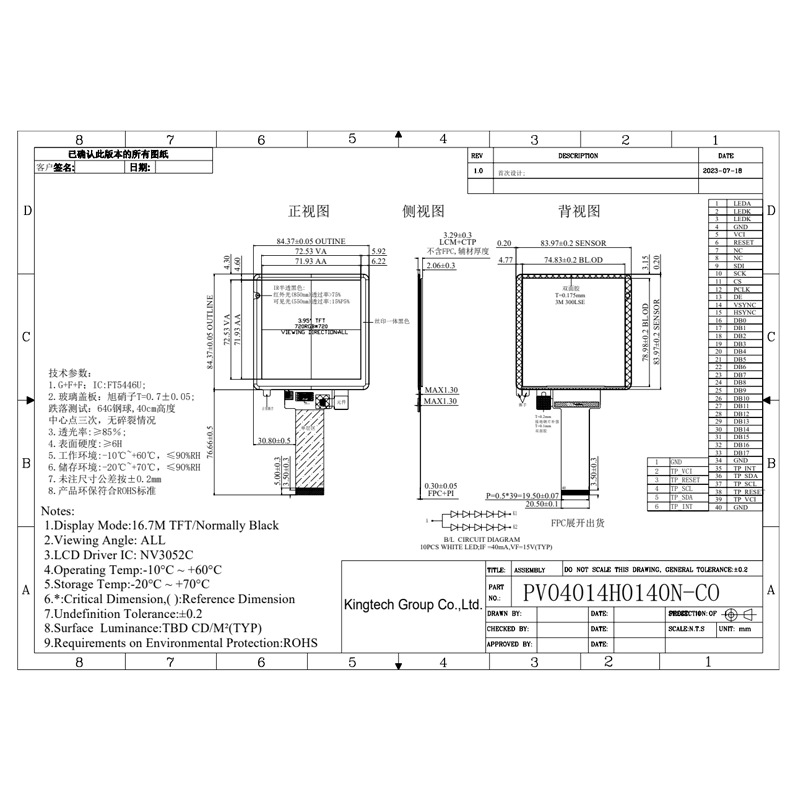

| Item | 4.0 inch IPS 720*720 square TFT display |
| Model No. | PV04014H0140N-CO |
| Resolution | 720*720 |
| Outline Dimension (mm) | 84.37*84.37*3.29 |
| Active Area (mm) | 71.93*71.93 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | RGB |
| Backlight | 5*2LED |
| Driving IC | NV3052C |
| PIN No. | 40 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, Hand-held device, Industrial, Smart Home |
The 4.0 inch 720*720 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
