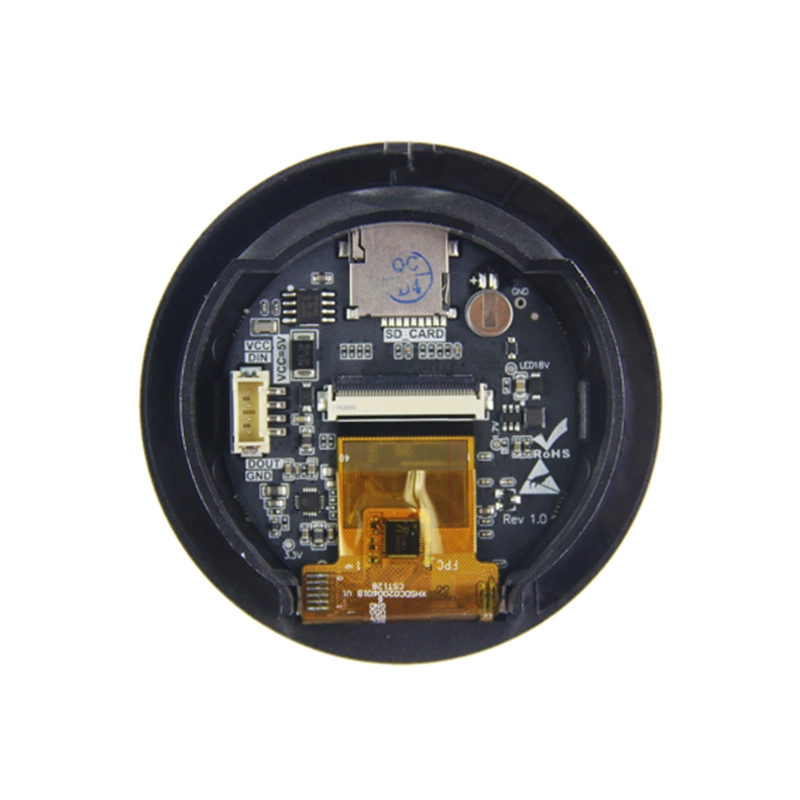

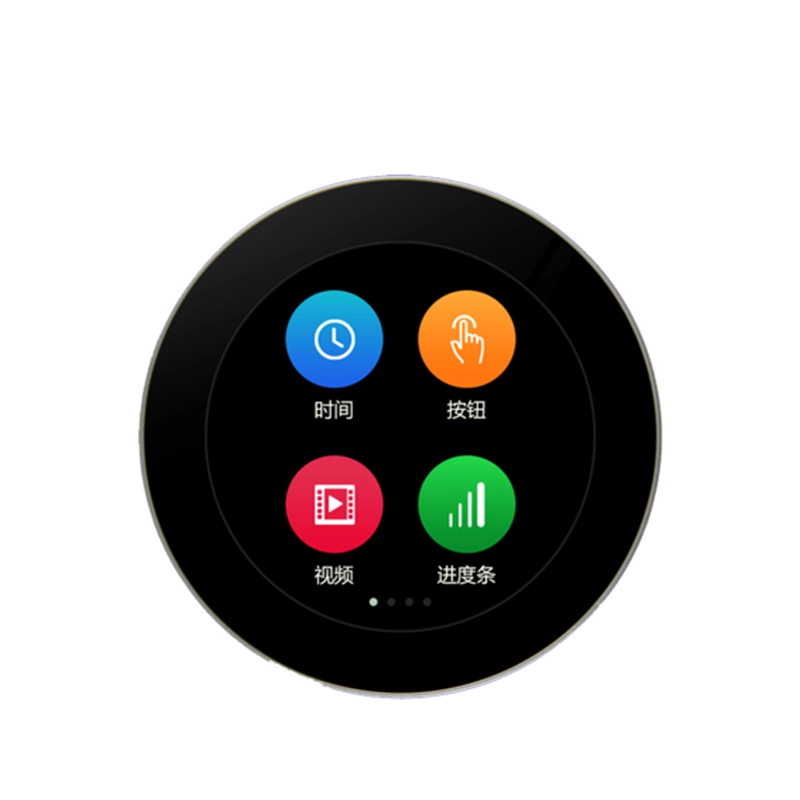

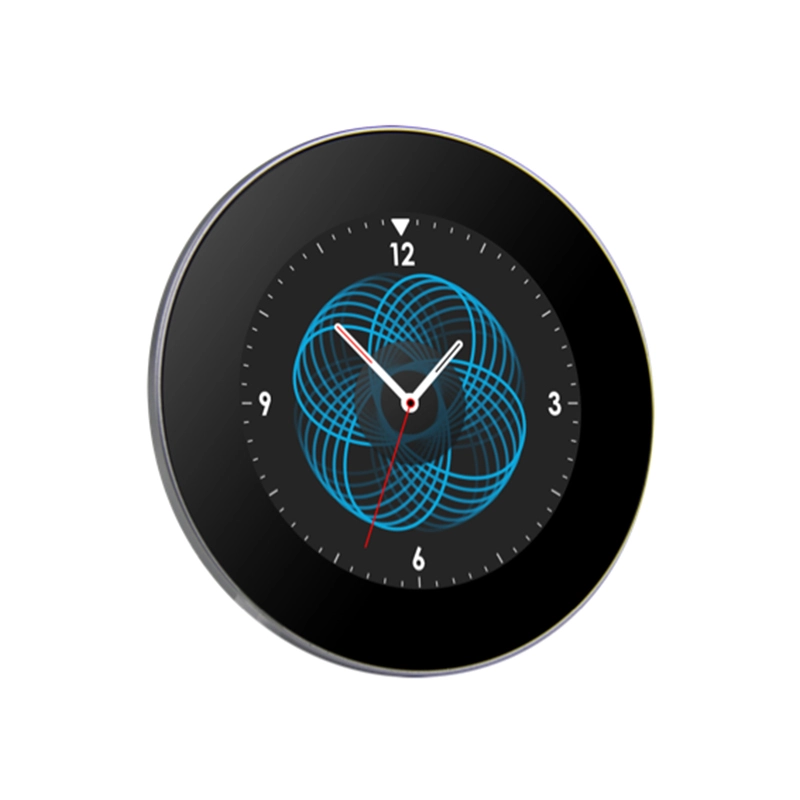

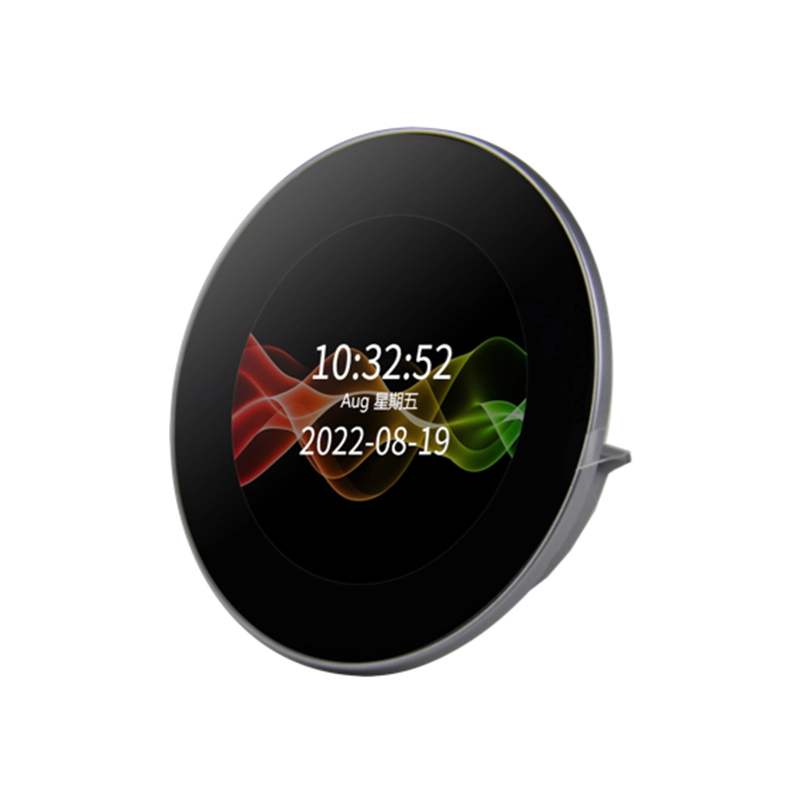

Kingtech 2.1 inch 480*480 with HMI board LCD screen with stable production. This 2.1 inch round LCD TFT LCD display supports TTL interface, 300nits brightness. It is IPS, full/wide/all viewing angle, with better display effect. For the touch part, we can also customize capacitive touch according to the customer requirements. The 2.1inch with HMI board product can connect laptop or main board to use directly.
TFT LCD module with HMI board
480x480
Stable supply
80/80/80/80 viewing angle
TTL interface
300nits brightness
Support capactivie touch and also can custom capacitive touch
＞20000H life-time
ISO9001:2015
Match ROHS standard
Get a Quote
Documentation
| Size | 2.1 inch |
| Resolution | 480*480 |
| Operating Temperature | -20～+70℃ |
| Storage Temperature | -30～+80℃ |
| Display Type | IPS LCD screen |
| Backlight | LED |
| Brightness (cd/m²) | 300 |
| Backlight Life-time(h) | >20,000 |
| Contrast | 1000:1 |
| Viewing Angle (L/R/T/B) | 80/80/80/80 |
| Touch Type | Capacitive touch screen |
| Capacitive Touch Screen Mode | Single-point, swipe touch |
| Capacitive Touch Screen Light Transmittance | More than 90%. |
| The Number of Capacitive Screen Touches | The number of capacitive screen touches is theoretically unlimited, and the touch life is related to the working environment (dust, humidity). |
| Capacitive Touch Cover Glass Customized | The "glass cover + capacitive touch" integrated lamination service can be customized according to the user's drawing size. |

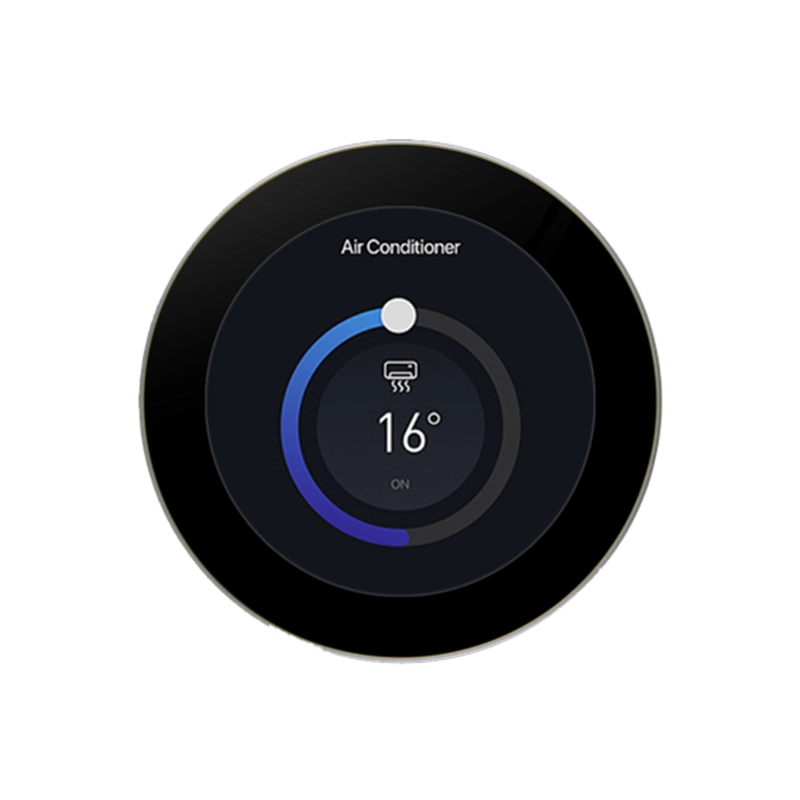

The 2.1 inch IPS 480x480 TFT LCD with HMI board display can be used for Medical, Industrial or EV-chargers, Margin, Agriculture, Smart-Home device, smart switch.
