Kingtech PV07066Y0140T is a 7-inch 1280x800 landscape LCD module using IPS TFT-LCD technology. It is composed of a TFT LCD panel, driver IC,FPC, backlight. The 7inch WXGA LCD has Full/Free/All/Wide viewing angle. It provides a sharp and vivid image quality with 1280x800/WXGA. It support LVDS interface. Currently its brightness is 350nits.

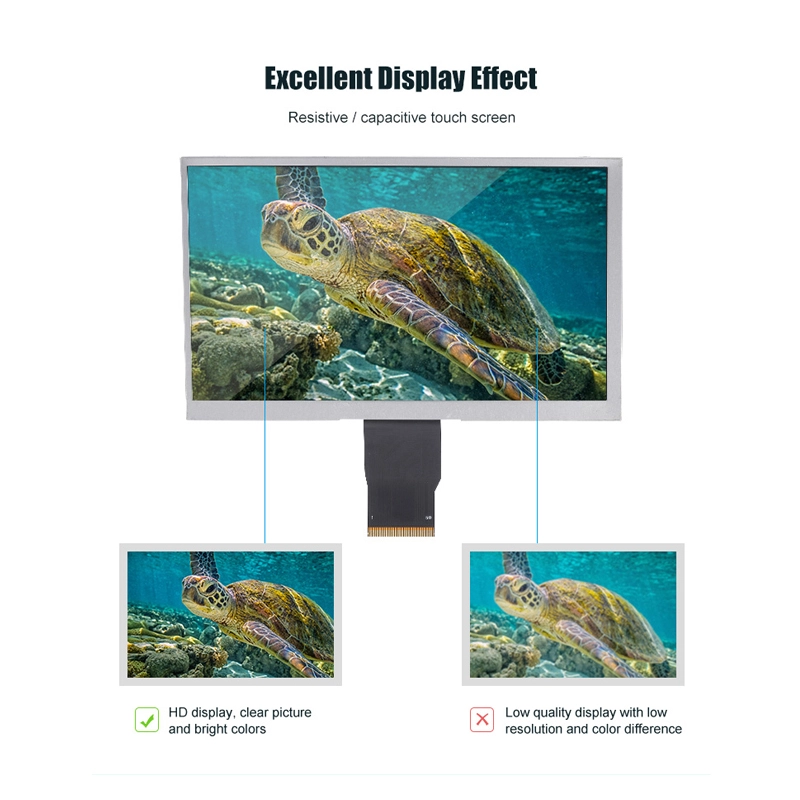

High resolution shows sharp clear image-1280x800
WXGA resolution
Landscape, Horizontal shaped

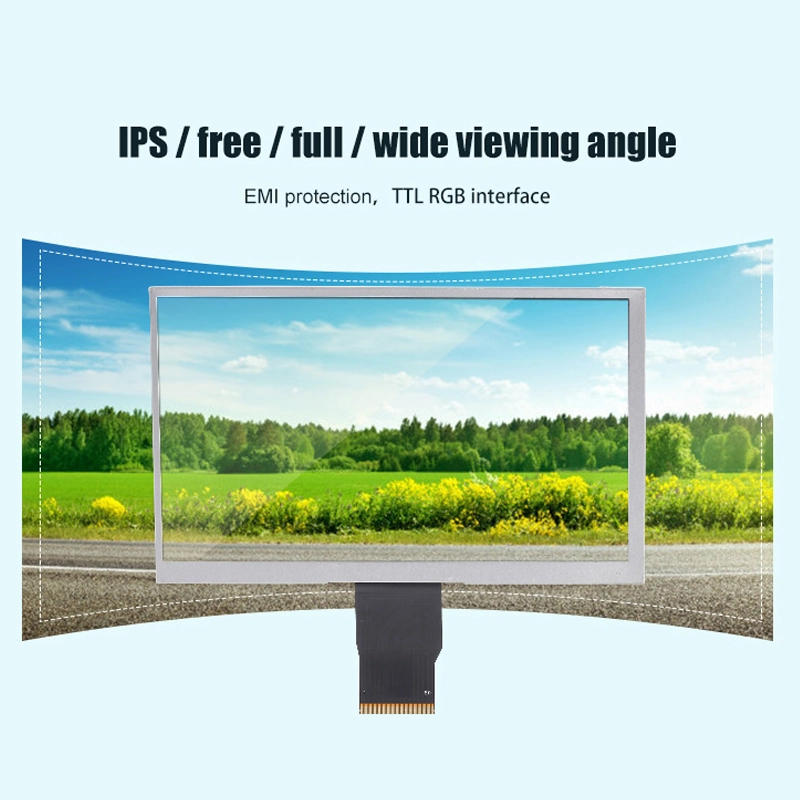

Full/Free/All/Wide viewing angle
Touch optional
Get a Quote
Documentation
| Item | 7.0 inch IPS 1280*800 LCD module |
| Model No. | PV07066Y0140T |
| Resolution | 1280*800 |
| Outline Dimension (mm) | 161.0*61.0*2.5 |
| Active Area (mm) | 149.76*93.6 |
| Viewing Angle | IPS |
| Brightness | 350nits |
| Interface | LVDS |
| Backlight | 5*4LED |
| Pin nums | 40 |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -10~50C |
| Storage Temperature | -20C~60C |
| Touch screen | Capacitive touch optional |
| Application | Medical, hand-held device, industrial, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer. |
The 7inch 1280x800 horizontal LCD module used for Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer.
