Kingtech PV07037Y0150N-R is 7.0inch TFT colorful LCD module. Its viewing angle is all, IPS panel technology. The resolution is 800x480. It supports RGB interface 50pins. Its backlight is 3*9LED, brightness can reach up to 800nits Typical. It is designed for Outdoor application, Industrial, Traffic Camera, automative, vehicle, etc.
7.0inch IPS LCD, WVGA
High brightness /Outdoor/800nits/Sunlight readable
RGB interface 50pins
Capacitive Touch or resistive touch optional
Get a Quote

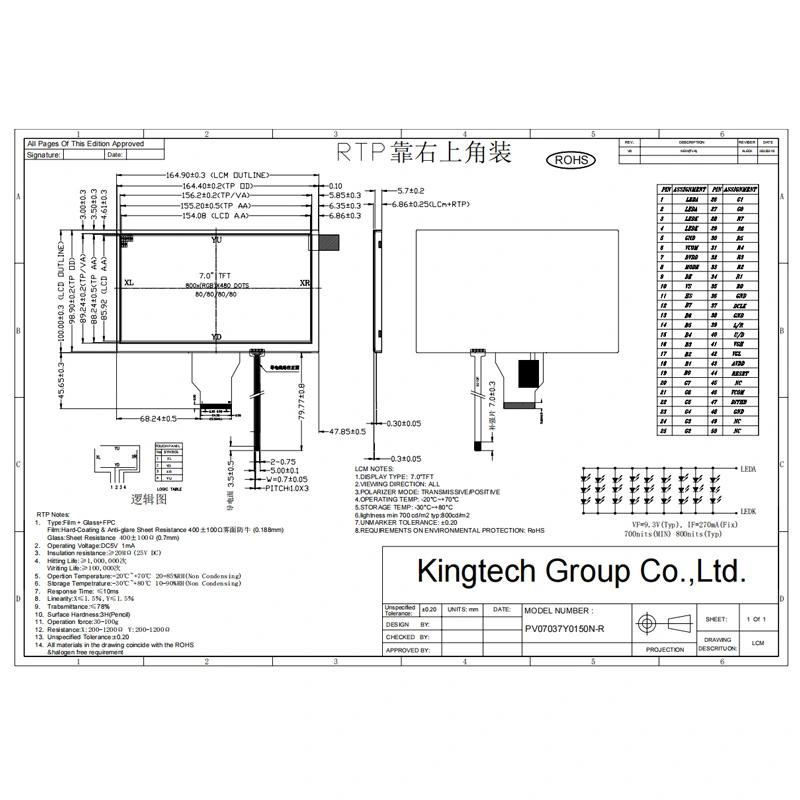

Documentation
| Item | High brightness 7.0inch IPS 800*480 LCD with RTP |
| Model No. | PV07037Y0150N-R |
| Resolution | 800*480 |
| Outline Dimension (mm) | 164.9*100.0*5.7 |
| Active Area (mm) | 154.08*85.92 |
| Viewing Angle | All |
| Brightness | 800nits |
| Interface | RGB |
| Backlight | 3*9 LEDs |
| Driving IC | / |
| PIN No. | 50 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch and resistive touch for optional |
| Application | Outdoor application, Industrial, Traffic, Camera, automative, vehicle |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer.
