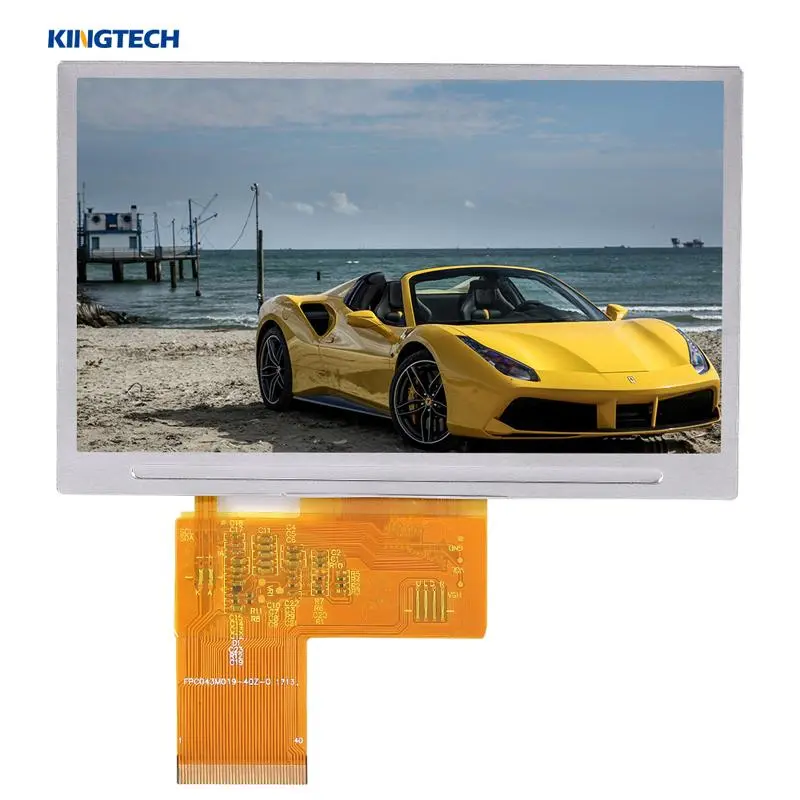

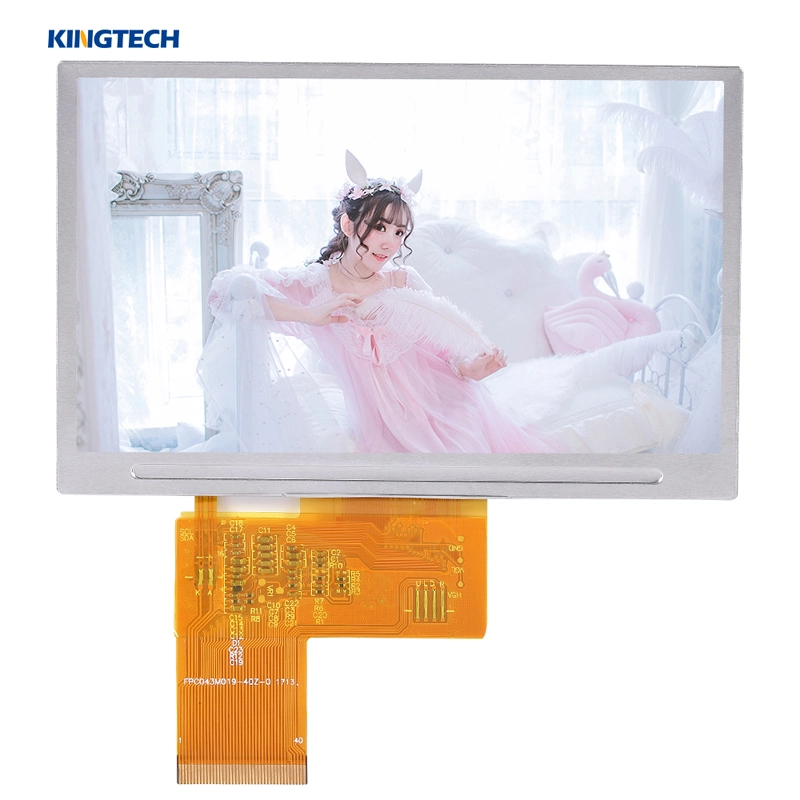

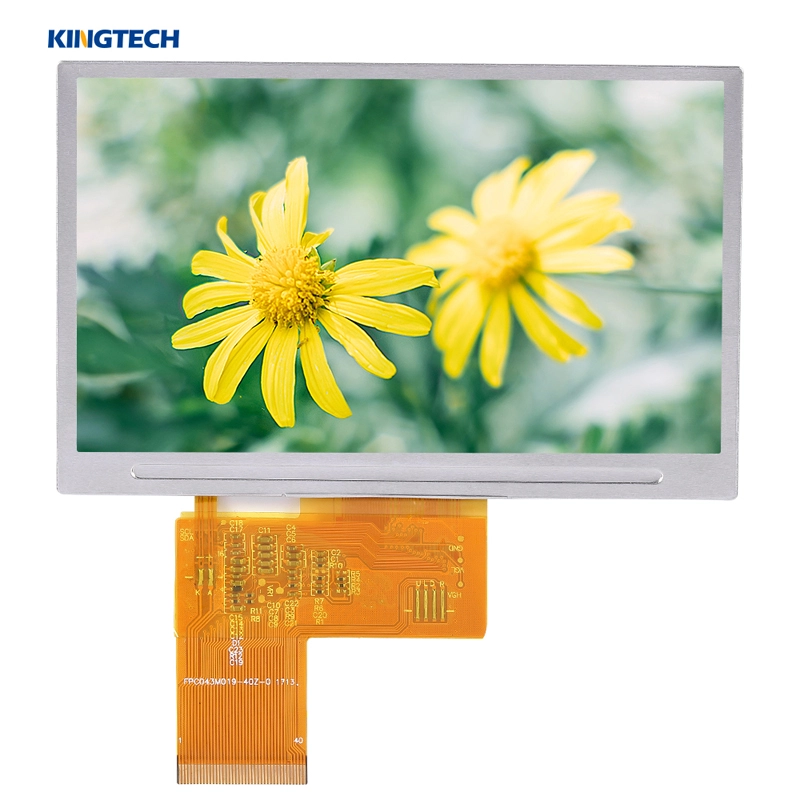

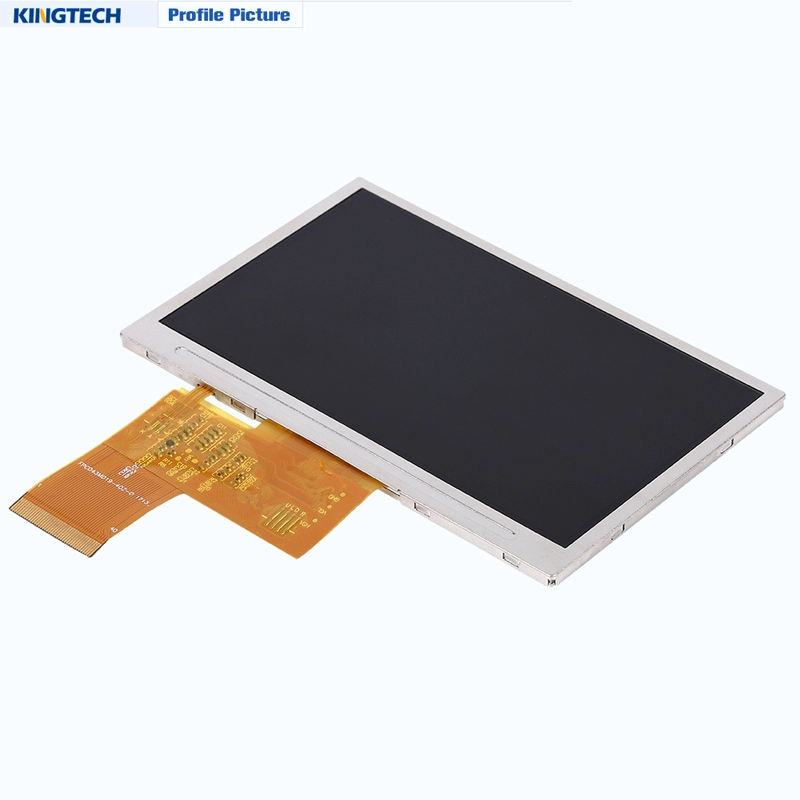

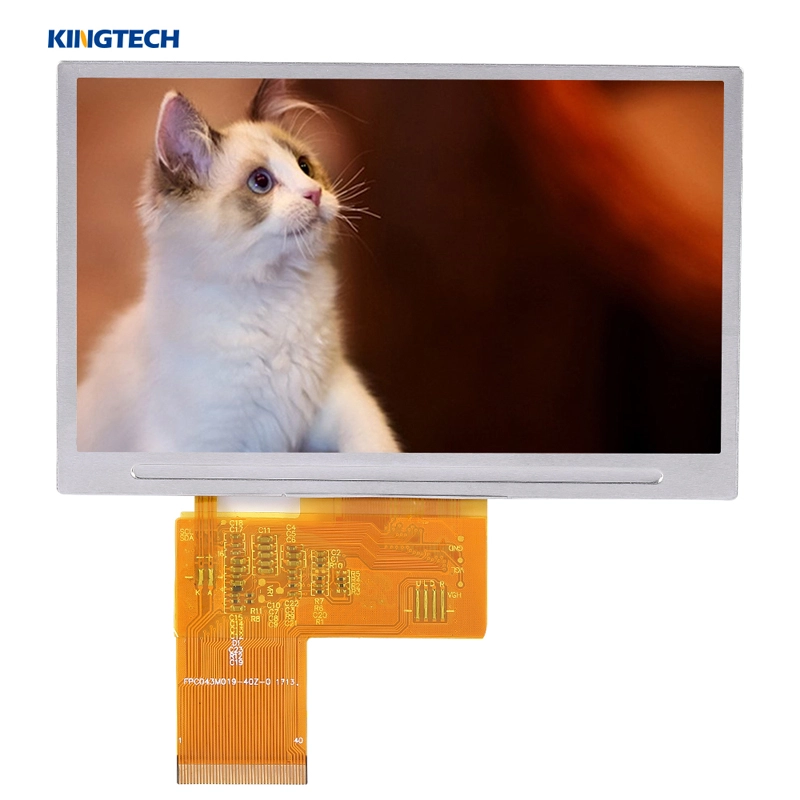

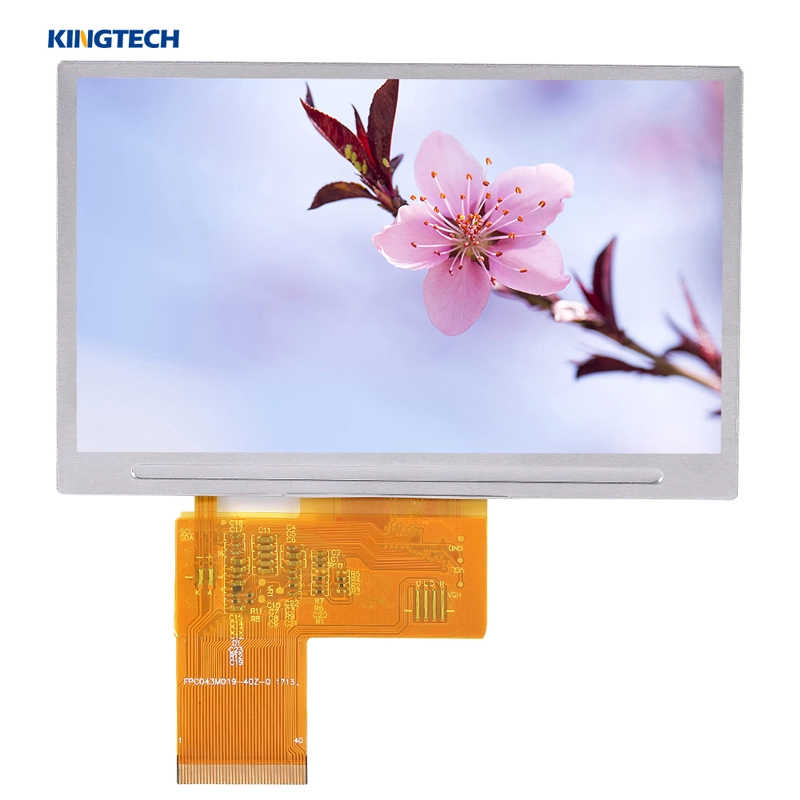

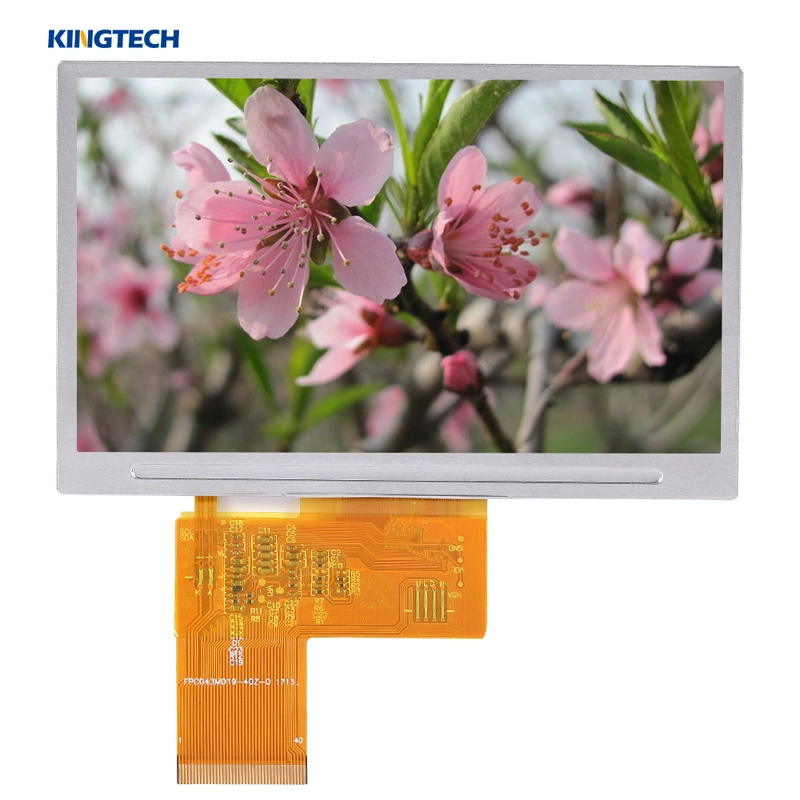

Kingtech 4.3inch 800x480 /WVGA TFT LCD display is our most leading product. The supply is very long and stable.
This 4.3inch module is IPS/all/free/wide/full viewing angle LCD display, it has the resistive touch and capacitive touch, we can also custom LCD module according to the customer's requirements. The 4.3inch LCD module can reach 700nits and sunlight readable. The 4.3inch screen has HDMI Board.
IPS TFT LCD display
Free/wide/tall/full viewing angle
800x480 / WVGA resolution
Landscape / Horizontal
High brightness / Sunlight readable screen / 700nits
Support resistive touch and capacitive touch

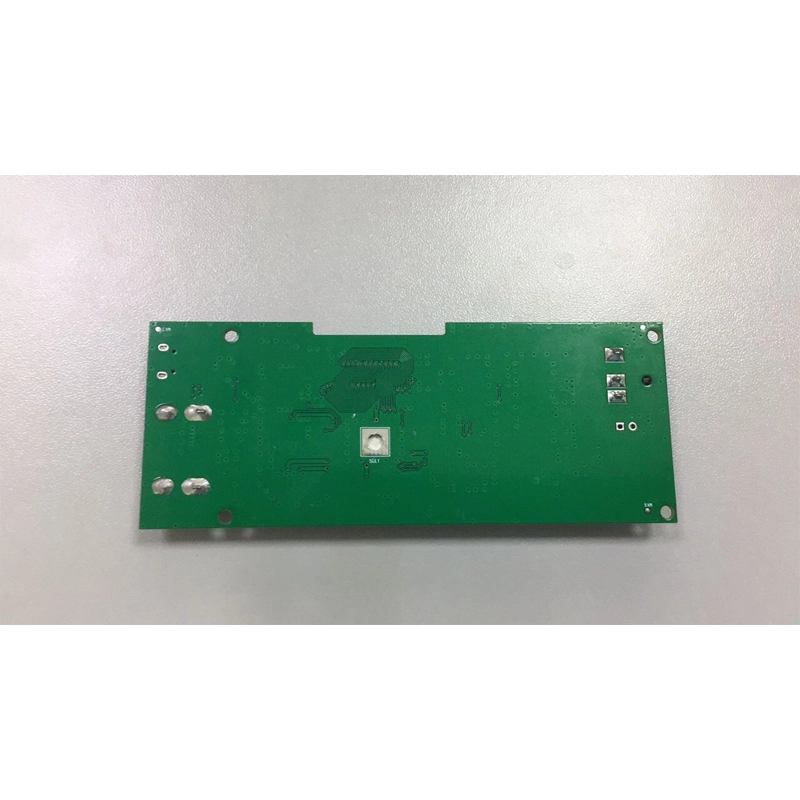

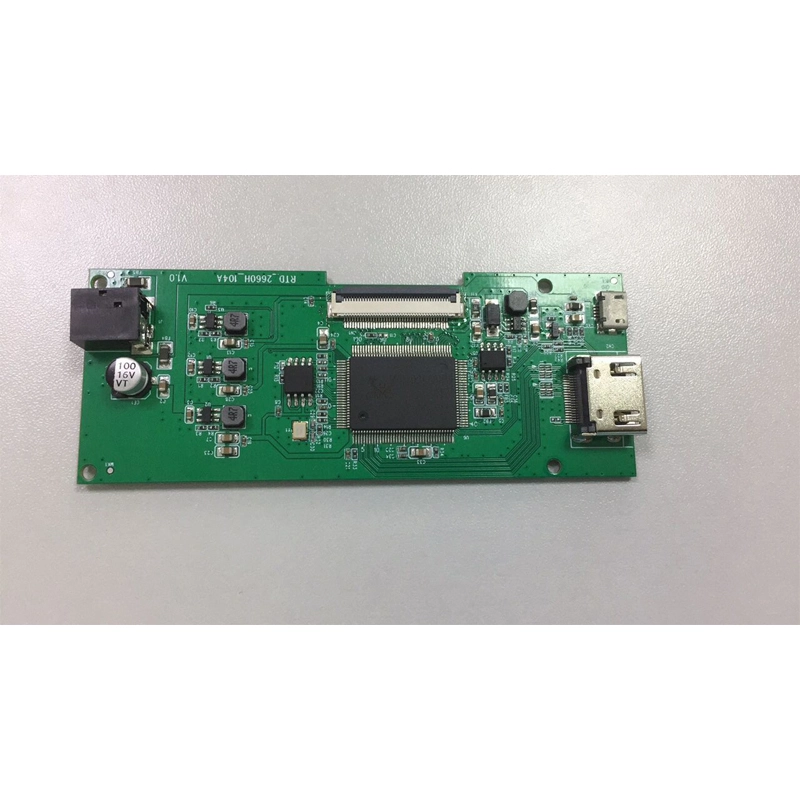

HDMI Board
Get a Quote
Documentation
| Item | kingtech 4.3inch IPS tft lcd module |
| Model No | PV04301LZR40B |
| Resolution | 800x480 |
| Outline Dimension | 105.5(W)×67.2(H)×3.0(T) |
| Active Area(mm) | 95.04(W)×53.86(H) |
| Interface | 24-bit Parallel RGB Interface |
| Brightness | 700nits |
| Viewing Angle | All |
| Driving IC | HX8264D+HX8664 |
| Display Mode | TFT Transmissive / Normally Black |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Board | Convert /HDMI Board |
| Touchscreen | Resistive and capacitive touchscreen |
The 4.3inch 800x480 IPS LCD module screen can be used for medical devices, handheld equipment, industrial control, smart Home, POS machine, E-bike, and black boxes.
