Item	0.91 inch 128*32 PMOLED display
Model No	PV091OL9924803000
Resolution	128*32
Outline Dimension	4011.51.21
Active Area(mm)	22.38*5.58
Driving IC	SSD1307
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Brightness	300nits
Interface	Serial Peripheral Interface, I2C Interface
PIN	14
Touch panel	Can custom capacitive touch

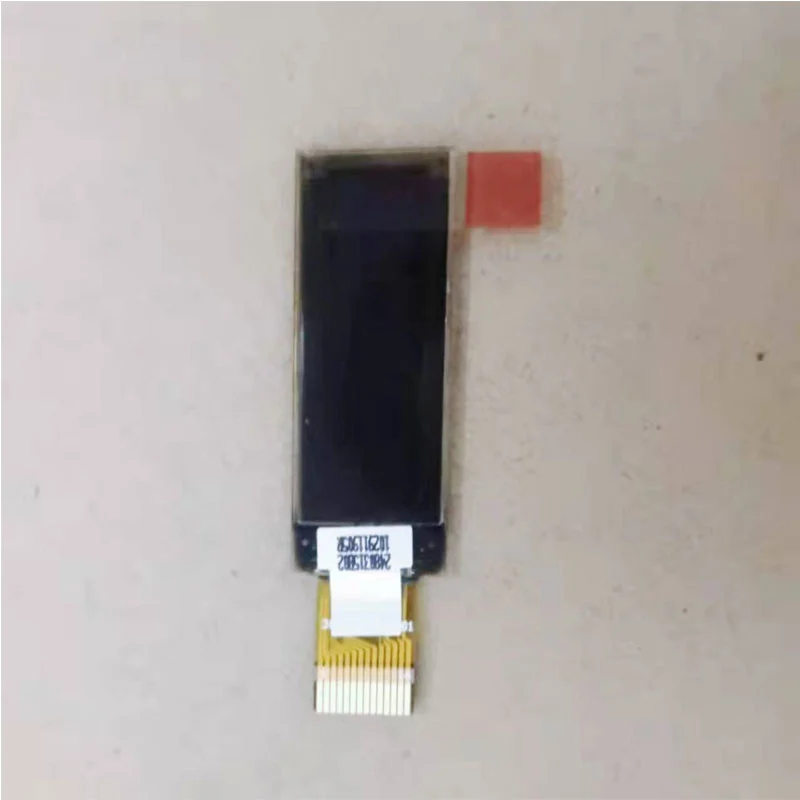

0.91 inch 128*32 IPS PMOLED display

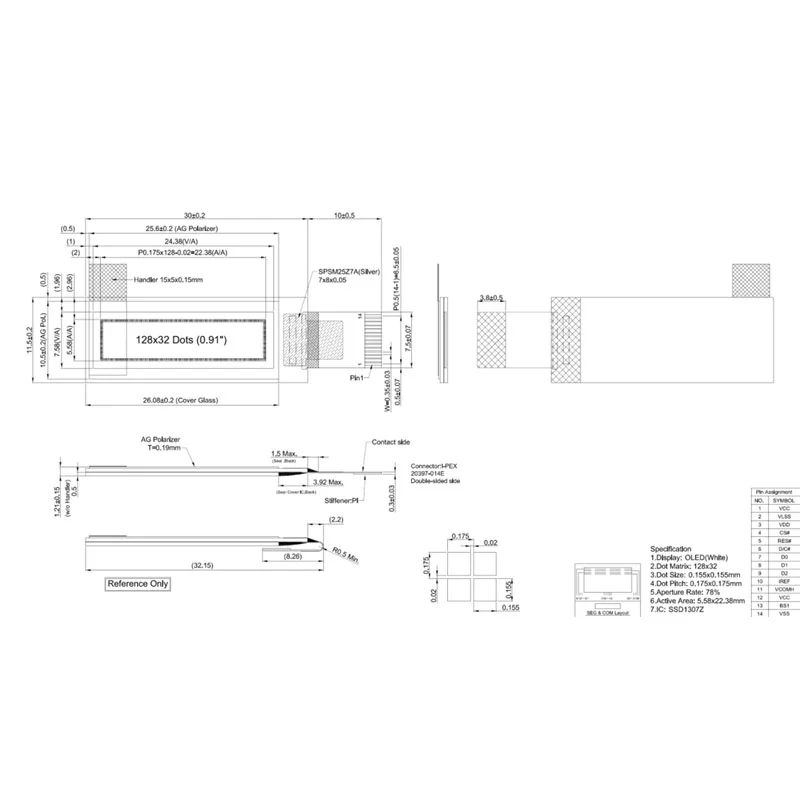

Specification of 0.91 inch 128*32 IPS PMOLED display

Application of 0.91 inch 128*32 IPS PMOLED display
