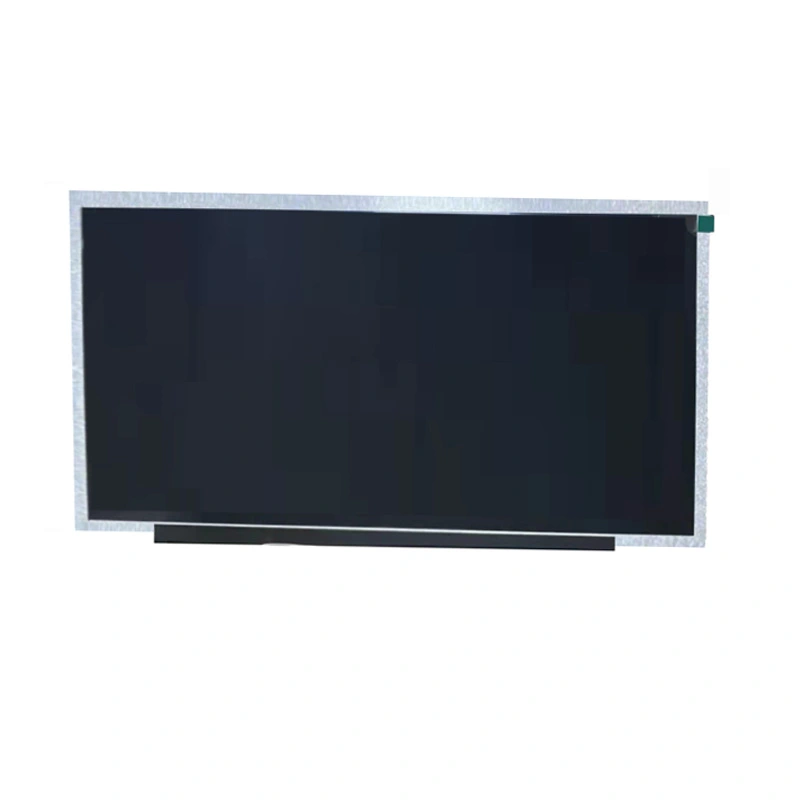

Kingtech 15.6 inch 1920*1080 IPS LCD display supply is very stable. This 15.6inch screen supports LVDS and an eDP interface. In addition, the 15.6inch TFT module has an existing HDMI Board. The lifetime is 20000h, and the brightness is 600 and 1000nits sunlight readable. This 15.6 inch TFT screen is All/Free/Wide/Full viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer's requirements.
All/Free/Wide/Full viewing angle/IPS
1920x1080
Stable supply
HDMI board/Convert board
Wide temperature/-20℃~+70℃
High brightness/Sunlight readable/outdoor/1000nits
Can custom capacitive touch screen
Get a Quote
Documentation

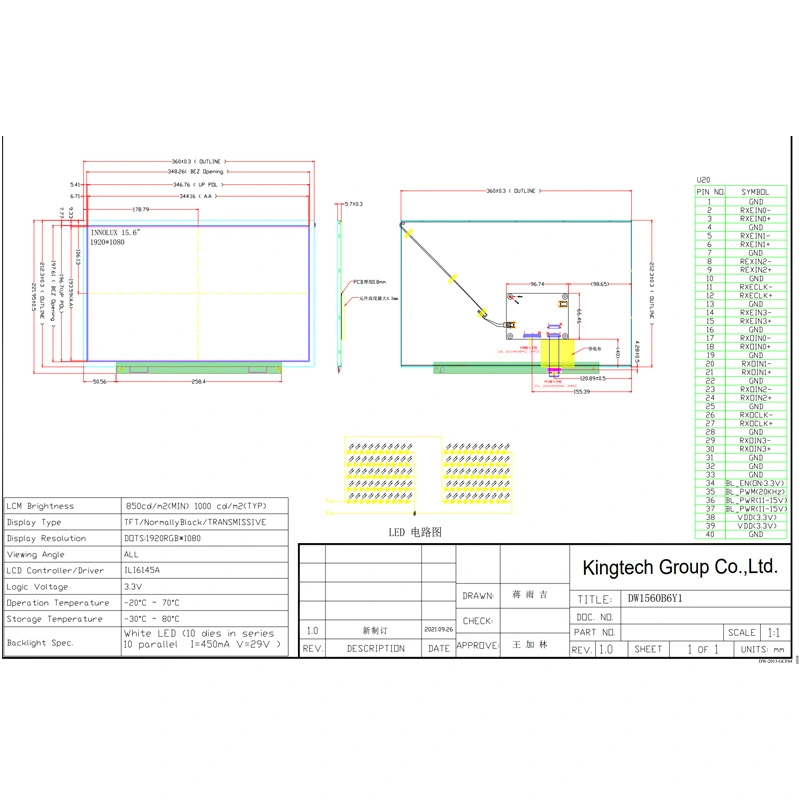

| Item | 15.6inch 1920x1080 LCD display |
| Model No | DW1560B6Y1 |
| Resolution | 1920x1080 |
| Outline Dimension | 222.0(H)*360.0(W)*5.70(T) |
| Active Area(mm) | 193.59(H)*344.16(W) |
| Interface | 8Bit LVDS |
| Driver IC | ILI6145A |
| Brightness | 1000nits |
| Viewing Angle | All |
| LED life | 20000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Board | Convert Board/HDMI Board |
| Touchscreen | Can custom capacitive touchscreen |
The 15.6inch 1920x1080 IPS TFT LCD display can be used for industrial and agricultural equipment, medical devices, game consoles, outdoor and smart homes, etc.
