Kingtech 4.3 inch 800x480 IPS 1000nits LCD display supply very stable. This 4.3inch LCD supports RGB interface. In addition, the 4.3 inch TFT module brightness is 1000nits high brightness, it can sunlight readable and used be for outdoor, and this 4.3 inch screen is All/Free/Wide viewing angle/Normally Black/IPS type. For the touch part, it has exisiting capacitive touch and resistive touch, Kingtech can also custom the touch according to the customer’s requirements.
All/Free/Wide viewing angle/IPS
1000nits/ high brightness/ sunlight readable /Outdoor
800x480 /WVGA
Stable supply
Can custom capacitive touch and resistive screen
Get a Quote
Documentation
| Item | LCD module 4.3 inch IPS 1000nits TFT |

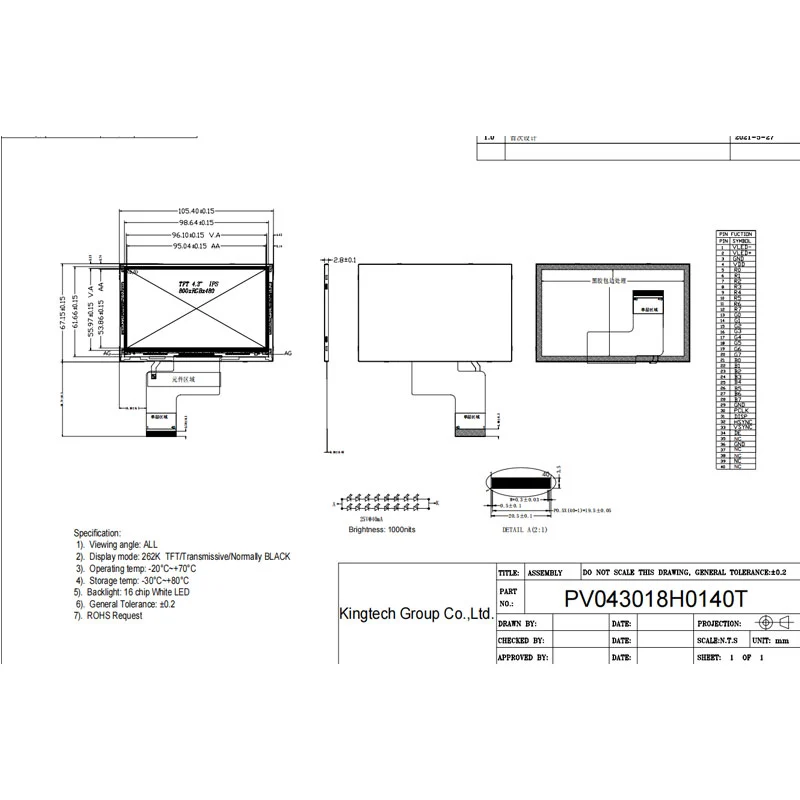

| Model No | PV043018H0140T |
| Resolution | 800x480 |

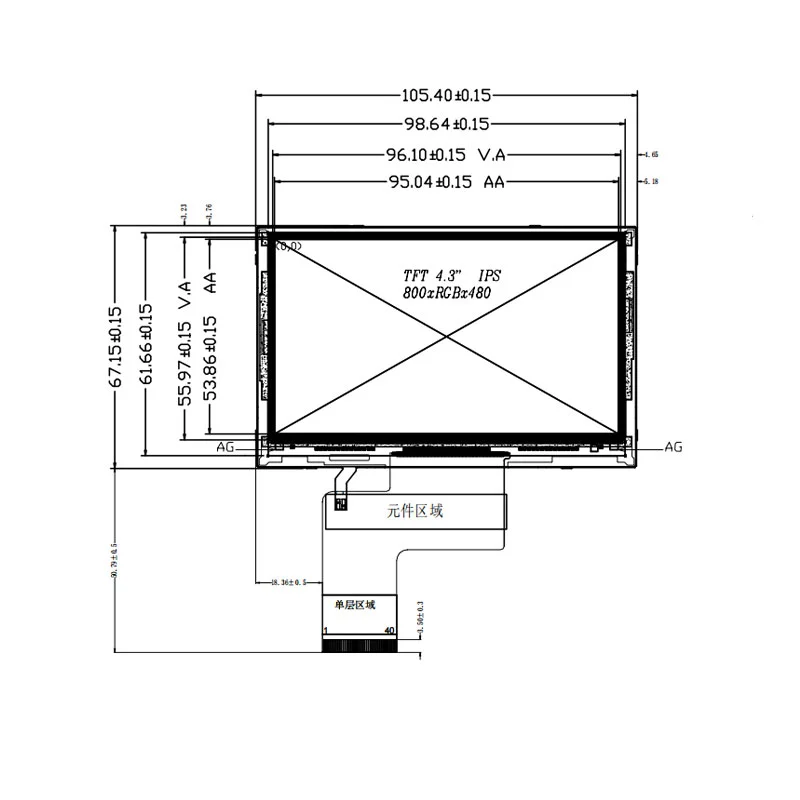

| Outline Dimension | 105.40*67.15*2.8 |
| Active Area(mm) | 95.04*53.86 |
| Interface | RGB |
| Brightness | 1000nits |
| Viewing Angle | All |
| Display Mode | Transmissive / Normally black |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touchscreen | Can custom Resistive / capacitive touch |
The 4.3 inch 800x480 /WVGA IPS TFT LCD module can be used for outdoor product, agricultural equipment, medical device, game console and smart home etc.
