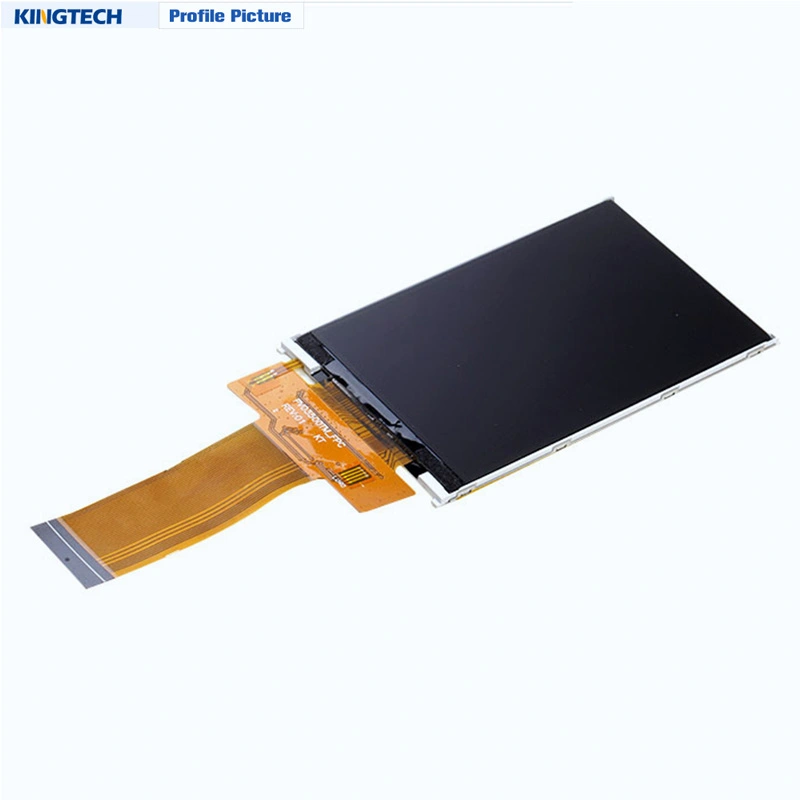

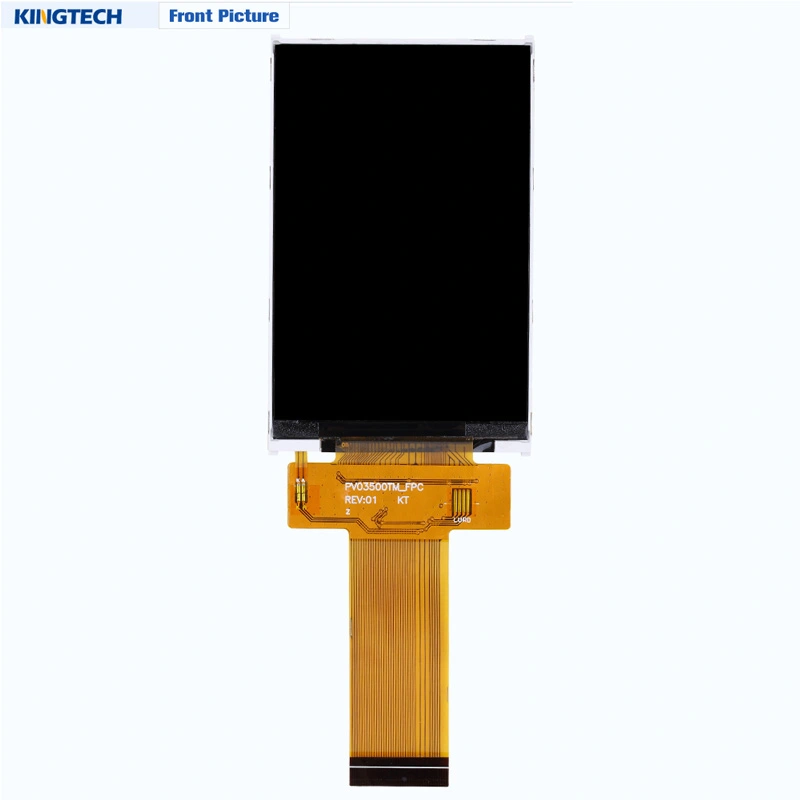

Kingtech 3.5 inch 320*480 TFT module display supply is very stable. This 3.5 inch LCD screen supports 8-/9-/16-/18-8080 MCU, 4-lines/3-lines SPI+ 16-/18-bit RGB interface multiple interfaces. In addition, this 3.5-inch screen is All/Free/full/wide viewing angle type. The 3.5 inch IPS display module has exciting resistive touch and capacitive touch, we can also customize the touch screen according to the customers requirements.
TFT display
320*480
Vertical/Portrait
Stable supply
IPS/Free/full/wide viewing angle
MCU/SPI/RGB interface, Multiple interfaces
Medical/industrial/The elevator/Hand-held/E-Bike
Support resistive touch and capacitive touch screen
Get a Quote

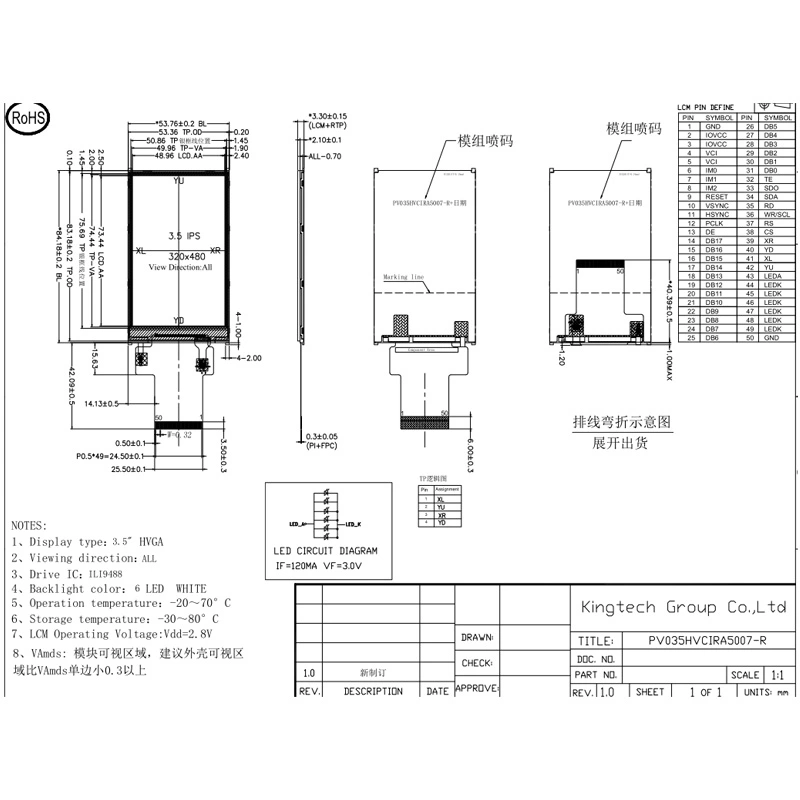

Documentation
| Item | 3.5 inch 320*480 display with resistive touch |
| Model No | PV035HV-CIRA5007-R |
| Resolution | 320*480 |
| Outline Dimension | 53.76(H)*84.18(W)*3.3(T) |
| Active Area(mm) | 48.96(H)*73.44(W) |
| Brightness | 300 nits |
| Viewing Angle | All |
| Interface | 8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB |
| Driving IC | ILI9488 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Support resistive touch and capacitive touch |
The 3.5 inch 320*480 IPS TFT display module can be used for medical, industrial products, elevators, Hand-held E-Bike, and others.
