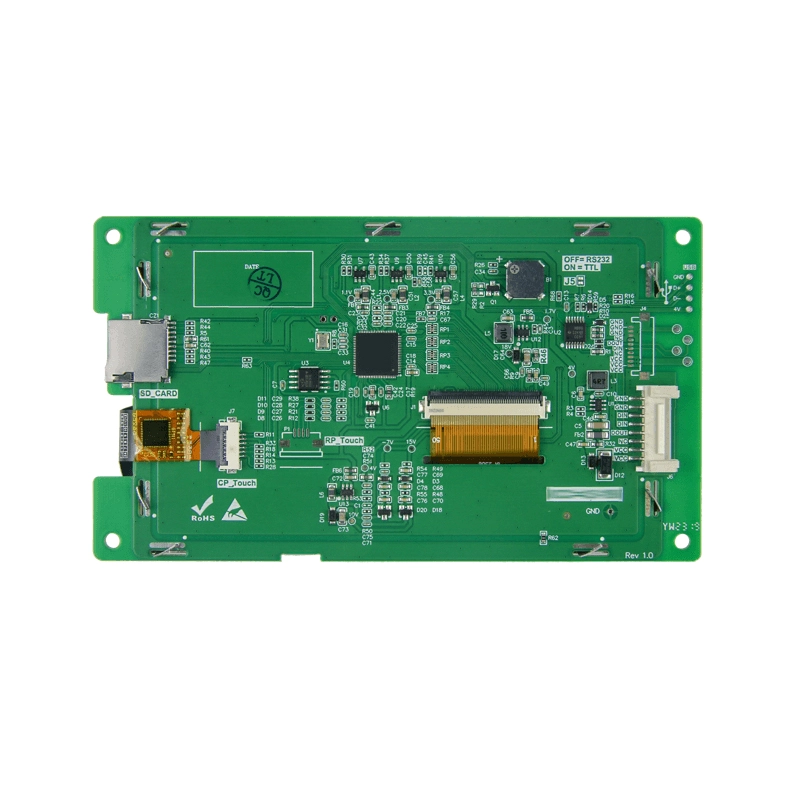

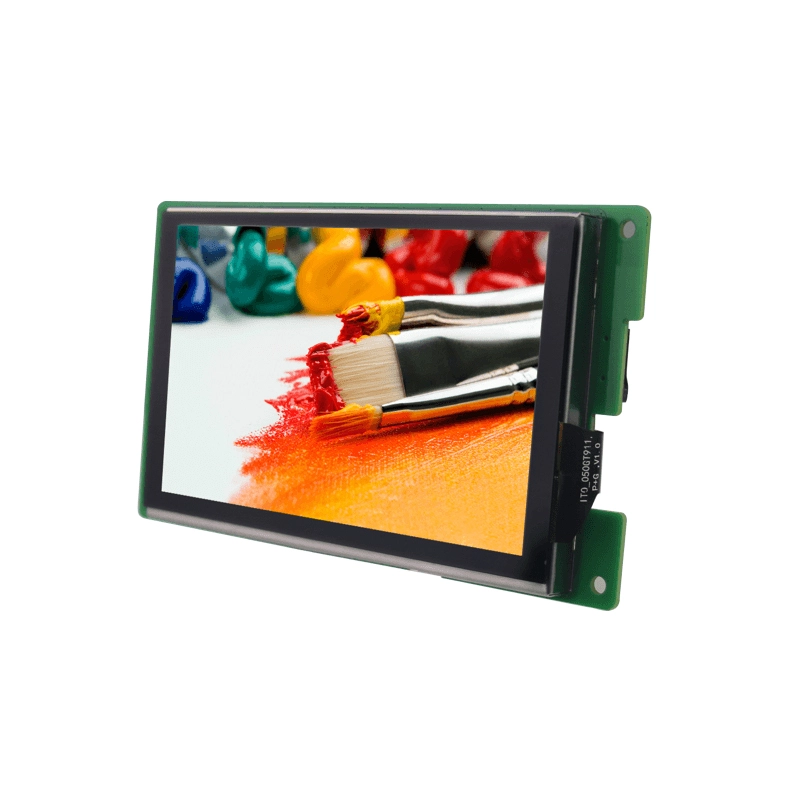

Kingtech 5inch TN 800x480 resolution TFT display with HMI board stable production. This 5inch TN display with HMI supports RGB interface, 280nits brightness, supports resistive touch and capacitive touch. The 5inch WVGA can operate image and video MP4 format. The HMI board memory is 128Mbit and support installation display with 0, 90, 180, and 270 degree rotation.
TFT LCD module with HMI board
800*480 /WVGA
Stable supply
RS232/TTL
280nits brightness
Supports resistive touch and capacitive touch
Match ROHS standard, ISO9001
Get a Quote
| Size | 5.0 inch |
| Resolution | 800*480 |
| Operating Temperature | -20～+70℃ |
| Storage Temperature | -30～+80℃ |
| Display Type | TFT LCD screen |
| Backlight | LED |
| Brightness (cd/m²) | 280 |
| Backlight Life-time(h) | >20,000 |
| Contrast | 500:1 |
| Viewing Angle (L/R/T/B) | 70/70/70/50 |
| Touch Type | Capacitive and Resistive Touch Screen |
| Capacitive Screen Touch Mode | Single-point, swipe touch |
| Capacitive Screen Light Transmittance | More than 90%. |
The 5inch 800x480 TFT LCD screen with HMI board can be used for Medical, Hand-held Device, Industrial, Energy Storage, EV-chargers, Forklift, Agricultural Equipment, Smart-Home etc.
