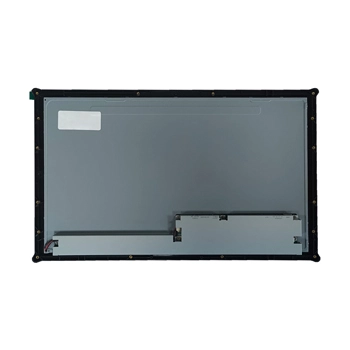

Kingtech 13.3'' inch 1920*1080 TFT module display supply very stable. This 13.3'' inch supports EDP interface. In addition, the 13.3'' inch TFT display module brightness is 1000nits for sunlight readable, and this 13.3'' inch screen is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
1000nits brightness/Sunlight readable/High brightness/Outdoor
Can custom resistive touch and capacitive touch
2 lane eDP interface with 2.7Gbps link rates
Thin and light weight
16.7M color depth, color gamut 72%
Get a Quote
Documentation
| Item | 13.3 inch IPS 1920*1080 TFT display |
| Model No. | PV0133015S0730R |
| Resolution | 1920*1080 |
| Outline Dimension (mm) | 307.6*183.05*5.5 |
| Active Area (mm) | 293.76*165.24 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | eDP |
| Backlight | 10*5LEDs |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial, EV-chargers |
The 13.3'' inch 1920*1080 TFT display module can be used for Medical, hand-held device, industrial, Smart-home, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
