Kingtech 2.4 inch QVGA small/tiny Transflective LCD display supply very stable. This 2.4 inch 240*320 LCD supports the MCU interface. In addition, the 2.4-inch Transflective module Driving IC is ST7789, and this 2.4-inch screen is IPS/Free/Full/Wide viewing angle type. For the touch part, Kingtech can custom the capacitive touch or resistive touch according to the customer’s requirements.
small/tiny display
Transflective
320*240
Stable supply
Sunlight readable / Outdoor
MCU interface
IPS / Free / Full / Wide viewing angle
Can custom capacitive touch and resistive touch
Get a Quote
Documentation
| Item | 2.4 inch LCD Transflective module display |
| Model No | PV02415Y0140Q |
| Resolution | 240*320 |

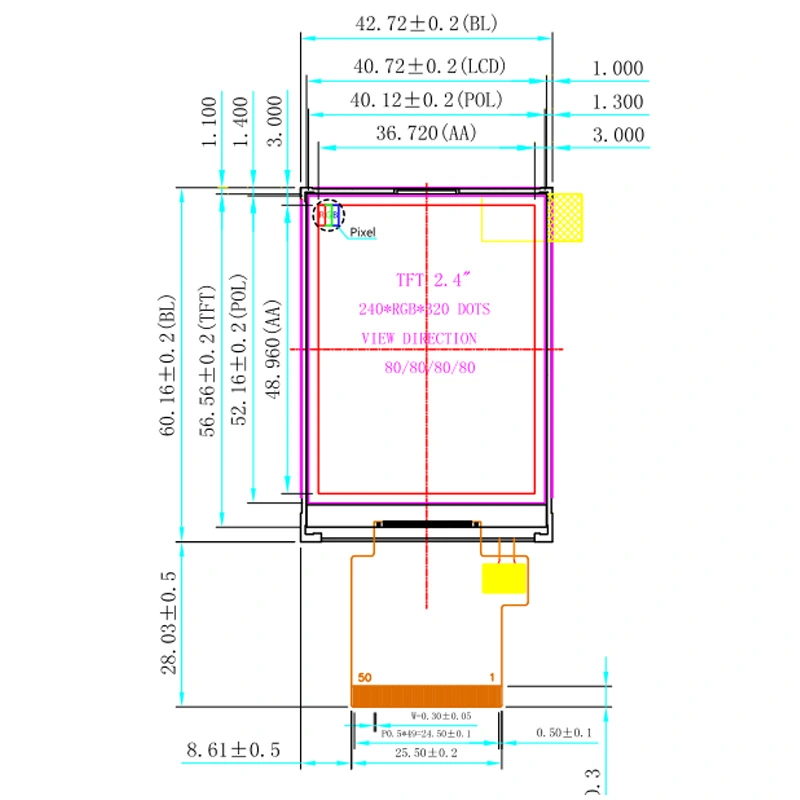

| Outline Dimension | 42.72*60.16*2.5 |
| Active Area(mm) | 36.72*48.96 |
| Viewing Angle | ALL |
| Interface | MCU |
| Driving IC | ST7789 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Display Type | Normally Black/ Transflective |
| Touch screen | Can custom resistive and capacitive touch screen |
The 2.4 inch 240*320/QVGA IPS Transflective LCD display can be used for agricultural equipment, medical device, game console, Hand-held, Industrial, POS, E-bike and smart homes, etc.
