Kingtech 1.77inch 128X160 resolution TFT LCD display. It with stable production. This 1.77 inch TFT LCD display supports MCU interface, ST7735 driver IC. It with 12 O'clock viewing angle. Mainly application for Smart home, hand-held device. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Small LCD display
12 O'clock viewing angle/TN view angle
Can custom resistive touch and capacitive touch
262K
Normally white
Get a Quote

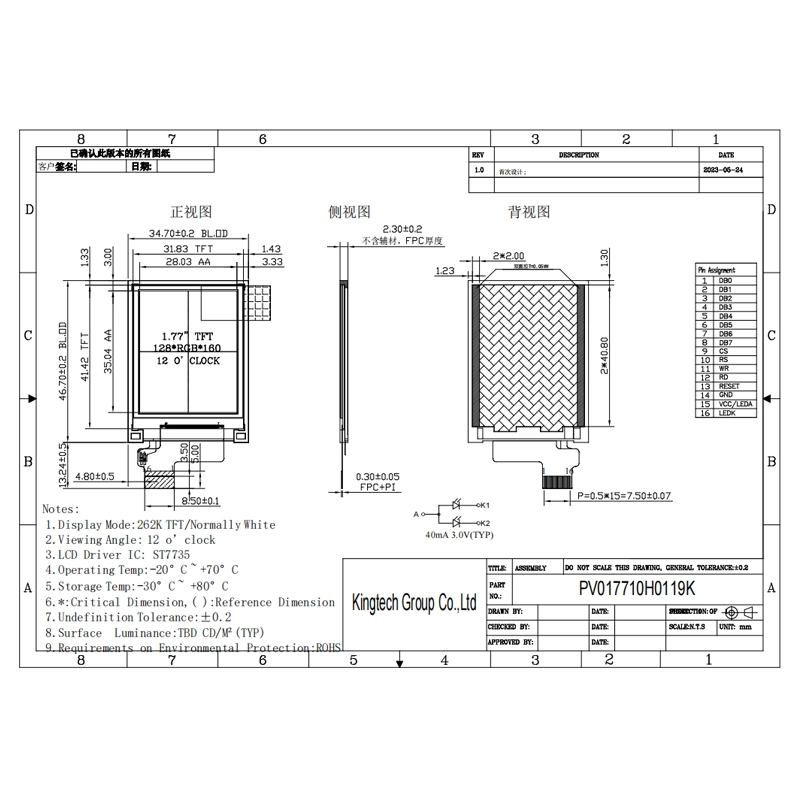

| Item | 1.77 inch 128x160 MCU interface LCD display |
| Model No. | PV017710H0119K |
| Resolution | 240*180 |
| Outline Dimension (mm) | 34.7*46.7*2.3 |
| Active Area (mm) | 28.03*35.04 |
| Viewing Angle | 12 O'clock |
| Brightness | / |
| Interface | MCU |
| Backlight | 1*2LED |
| Driving IC | ST7735 |
| PIN No. | 19 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 1.77inch 1280x160 TFT LCD module can be used for Medical, hand-held device, industrial, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
