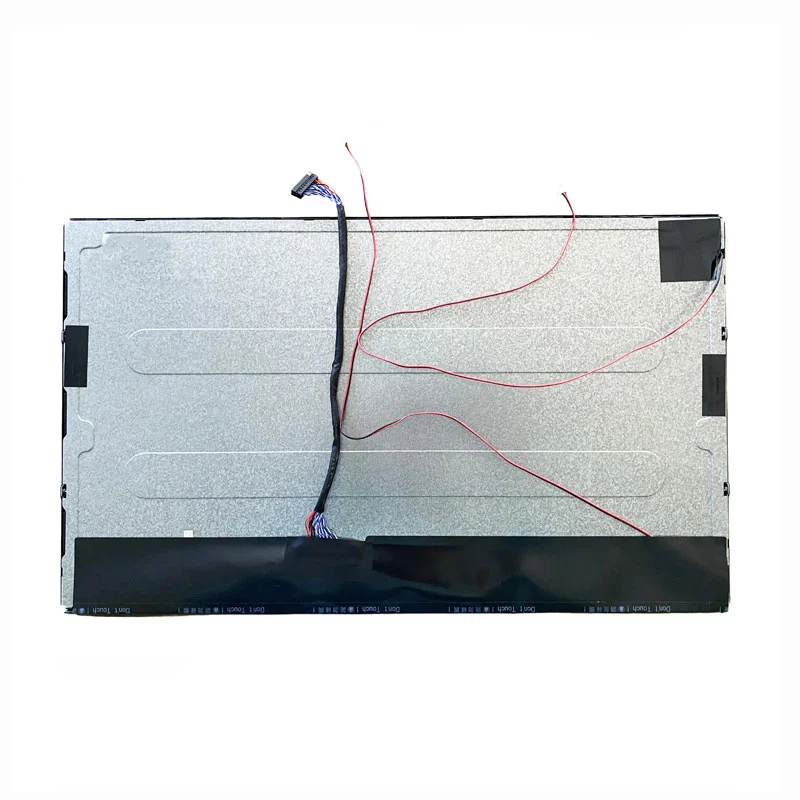

Kingtech 18.5 inch 1366*768 Landscape TFT LCD display supply very stable. This 18.5 inch supports LVDS interface. In addition, the 18.5 inch TFT module brightness is 930nit high brightnesss, and this 18.5 inch screen is IPS / Free / Full / Wide viewing angle type. For the touch part, Kingtech can custom the touch according to customer's requirements.
Landscape / Horizontal screen
1366*768
Stable supply
IPS / Free / Full / Wide viewing angle
High brightness/Sunlight readable/950 nits
LVDS interface
Can custom capacitive touch
Get a Quote
Documentation
| Item | 18.5 inch 1366*768 TFT LCD module |
| Model No | PV185001TX30B |
| Resolution | 1366*768 |

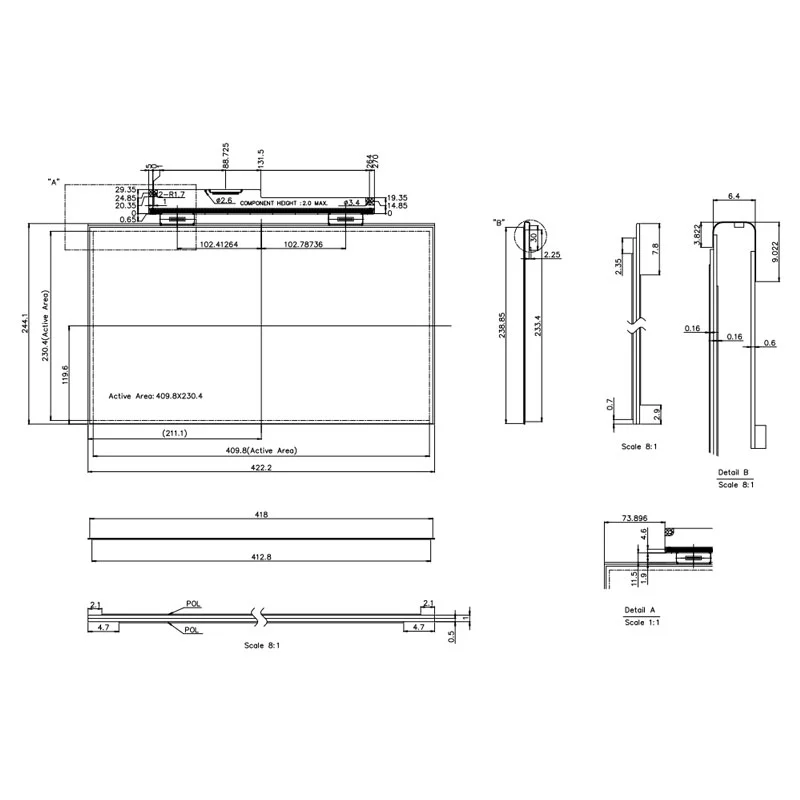

| Outline Dimension | 430.37mm*254.6mm*11.2mm |
| Active Area(mm) | 413.4mm*233.4mm |
| Color Depth | 16.7M |
| Interface | LVDS |
| Brightness | 930nits |
| Viewing Angle | ALL |
| Display Mode | Normally BLACK |
| PIN | 30 |
| Operating Temperature | -15~65 |
| Storage Temperature | -20~70 |
| LED life time | 30000 |
The 18.5inch 1366*768 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
