LCD Type	TFT
Display color	16.7M
Viewing Direction	12 O'clock
Operating temperature	-20~+70℃
Storage temperature	-30~+80℃

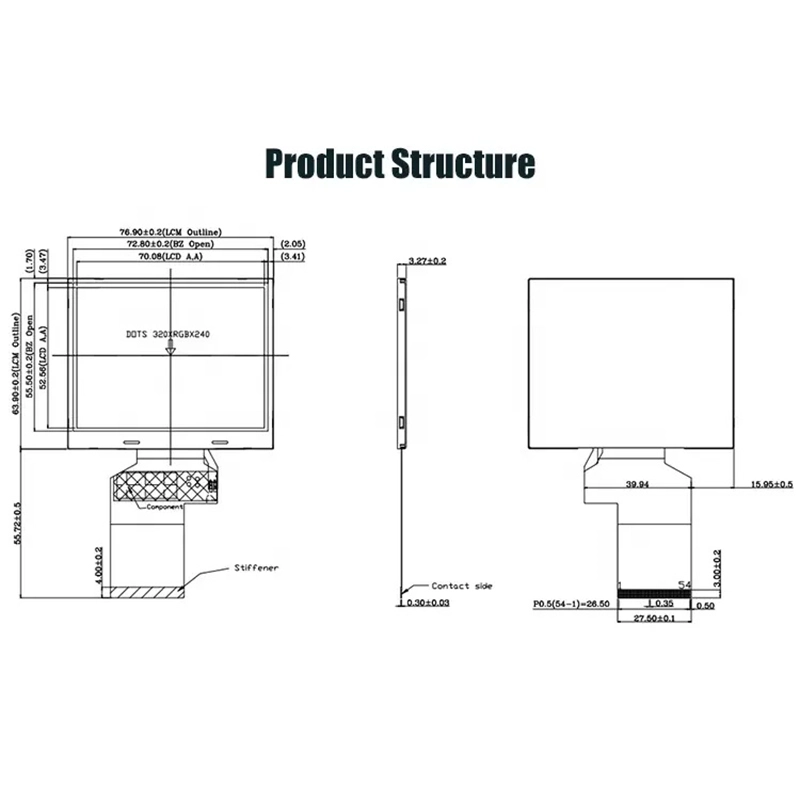

Module size	Refer to outline drawing
Active Area(W×H)	70.08x52.56
Number of Dots	320x240
Controller	HX8238D
Power Supply Voltage	3.3
Outline Dimensions	Refer to outline drawing
Backlight	6-LEDs (white)
Weight	- - -
lnterface	RGB

3.5-PV035012H0554M

Video of 3.5-PV07076T0230A

Specification of 3.5-PV035012H0554M
